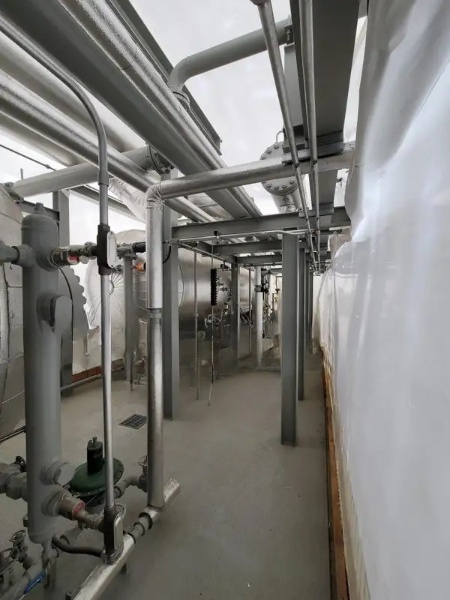

New 200 MMSCFD refrig plant (2 x 100 MMSCFD trains) built by Alco in 2016.

Available equipment includes the following:

(2) Gas/Gas Exchangers, 14,947,210 BTU/hr (T.S. rated 900 psig, S.S. rated 900 psig).
(2) De-Oiler Pots.
(2) Gas Chillers, 2,523,650 BTU/hr (T.S. rated 900 psig, S.S. rated 300 psig)
(2) Low Temp Separators, 78" ID x 16' S/S rated 900 psig, horizontal, 3-phase.
(2) Propane/Sub-Coolers.
(2) De-Ethanizer Towers, 12-3/4" OD x 46' F/S rated 550 psig.
(2) De-Ethanizer Reboilers, 243,498 BTU/hr, (T.S rated 300 psig, S.S. rated 550 psig).
(2) Glycol Flash Separators, 24" OD x 6' S/S rated 150 psig).
(4) Glycol Injection Pumps, 7.5hp, 8.4 USGPM at 900 psig.
(2) Glycol Particulate Filters & (2) Glycol Charcoal Filters.
(2) Glycol Reconcentrators & (2) Glycol Reboilers.
(1) Suction Scrubber, 66" ID x 10' S/S rated 300 psig.
(1) Propane Economizer, 60" ID x 10' S/S rated 300 psig.
(2) Propane Screw Compressors, Frick SGC2817, 1000 hp EMD.
(2) Propane Condenser/Product Coolers, ACE E144-2, 3 Fan.
(1) Propane Accumulator, 120" ID x 30' S/S rated 300 psig.
(1) EG Cooling Water Cooler, ACE E96.
(1) Fuel Gas Scrubber Package, 36" OD x 6' S/S rated 250 psig.
