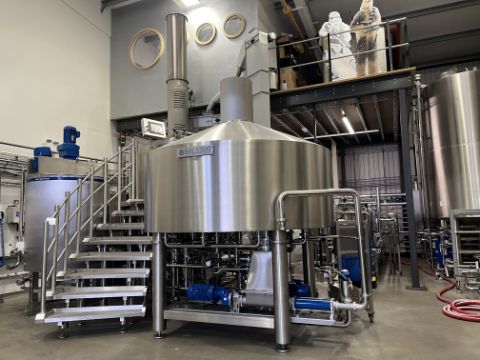

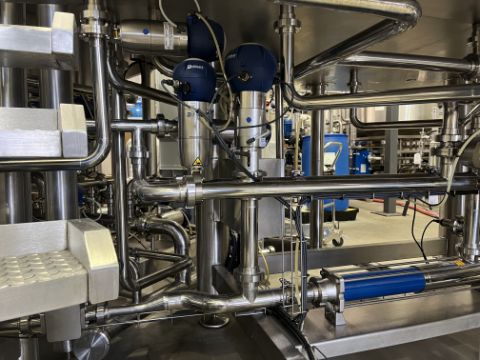

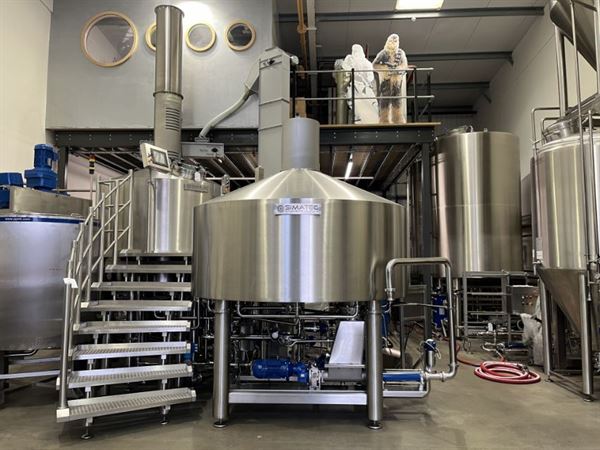

24 HL Automated Modular Brewhouse comprising of
- Brewhaus processed skid
- Model Top modular - S/N: TM240080

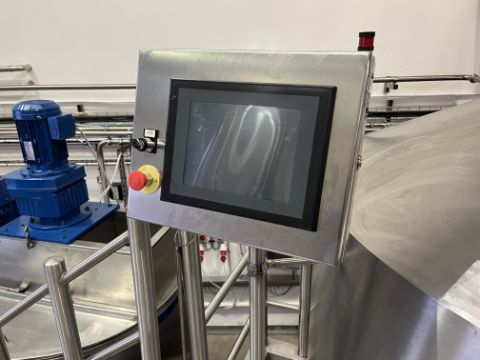

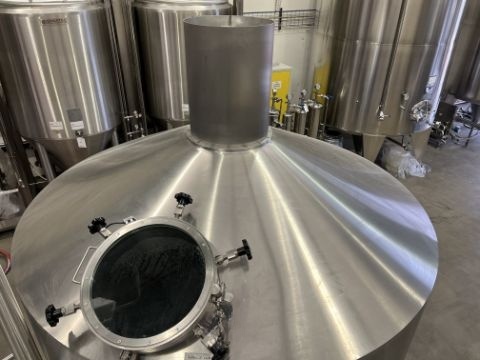

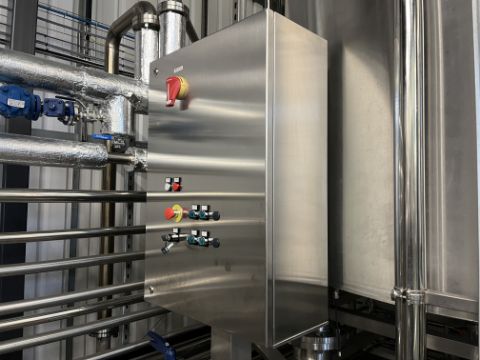

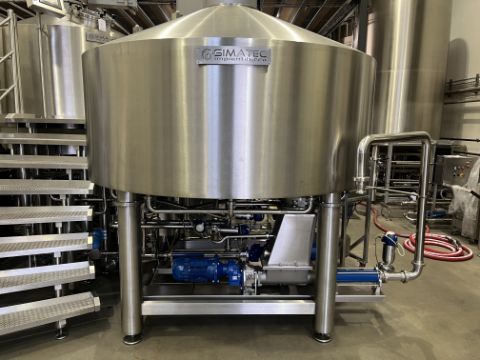

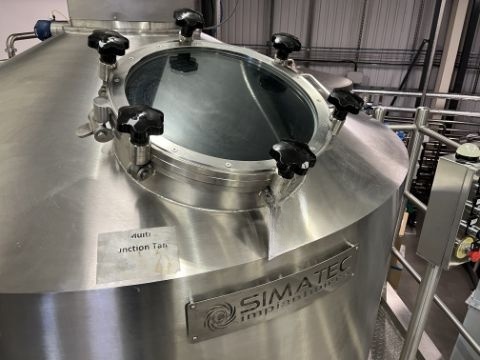

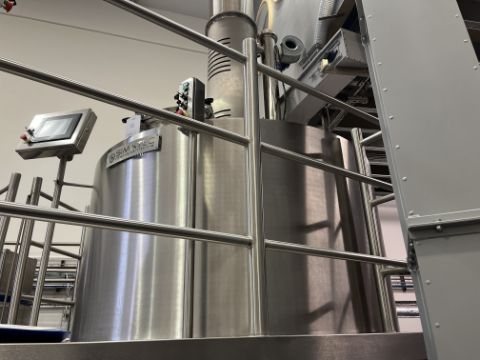

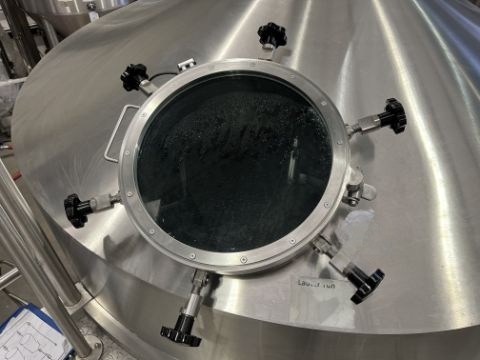

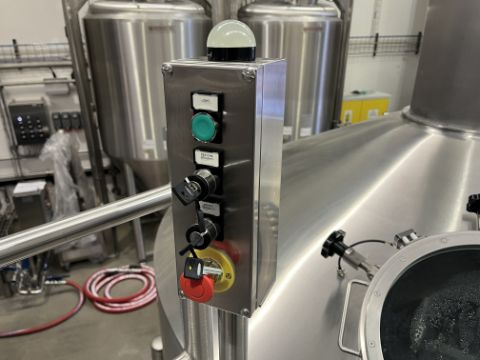

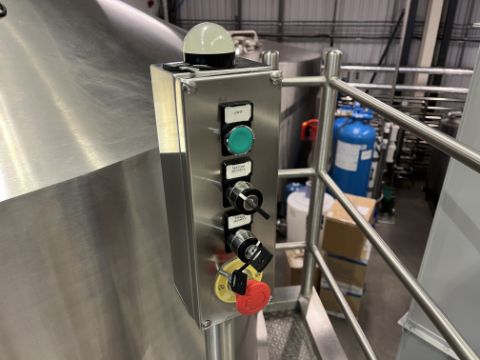

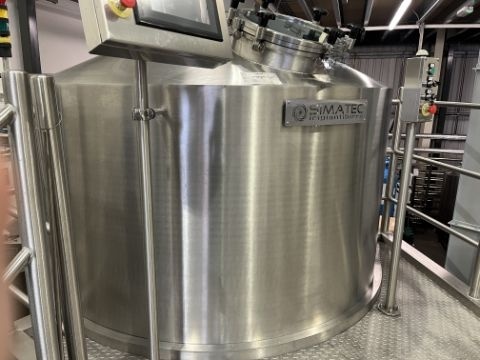

- Lawter multifunction MFV kettle tank with control panel

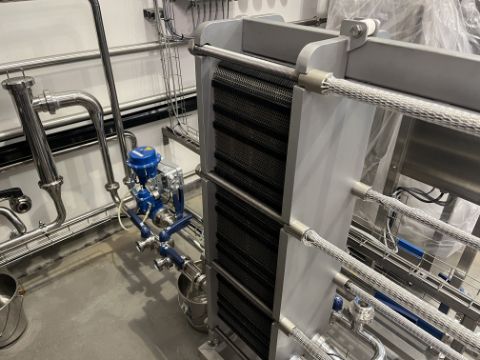

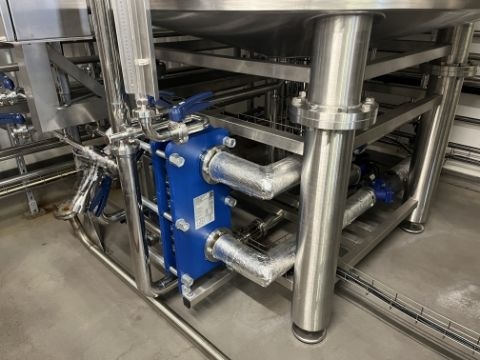

- Plate type heat exchanger

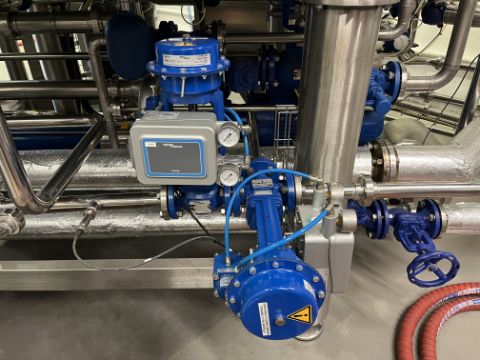

- Steam PRV for control of steam temperature during boil
- Automatic spent grain removal to screw threaded outlet (can be attached to a hose or further steelwork)
- Premashing system to wet malt before entering MFV

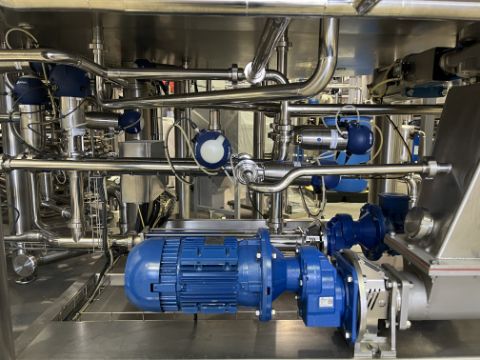

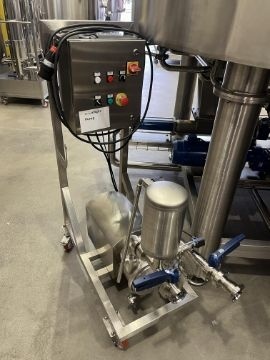

- Scavenger pump

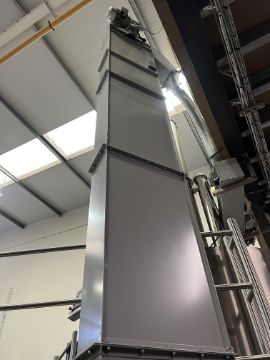

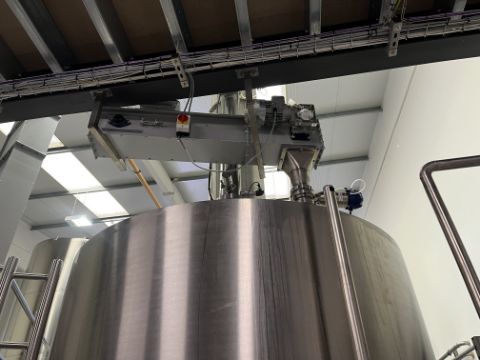

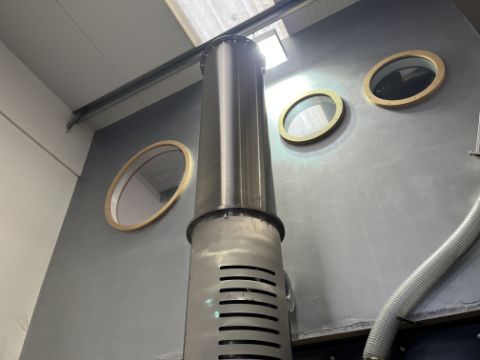

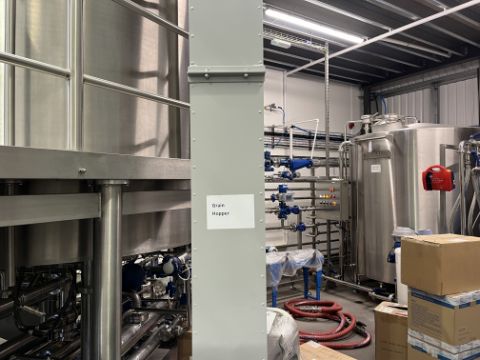

- Supply of malt elevator (grain hopper)
- Flow meter (mobile) extra

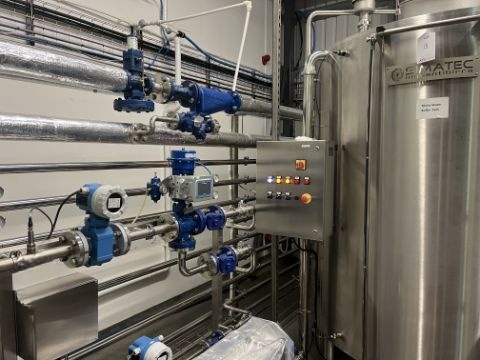

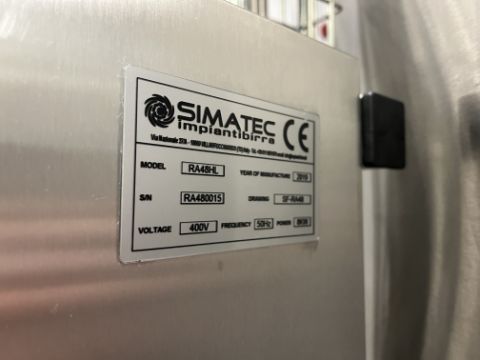

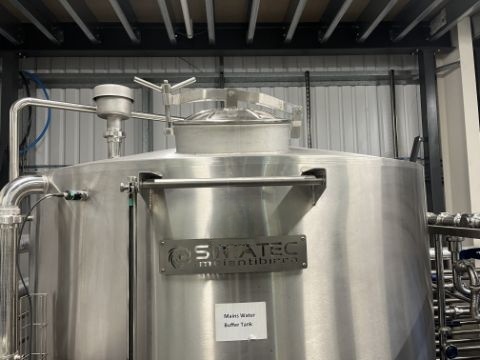

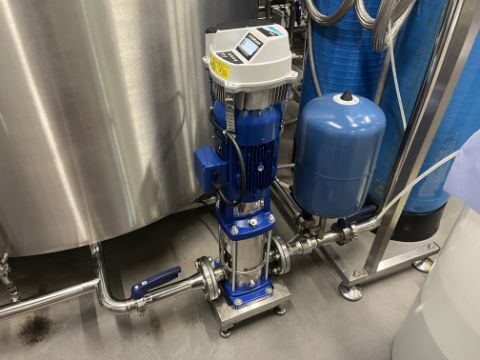

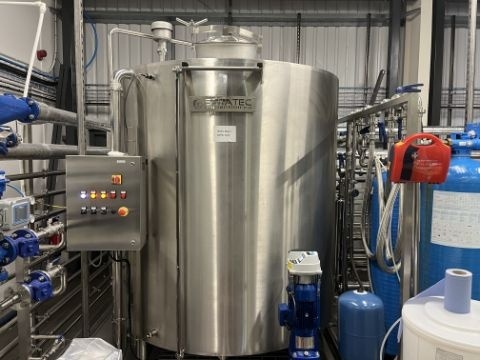

- Simatec main water buffer tank and pump
Model: RA48HL
S/N: RA480015
YOM: 2019

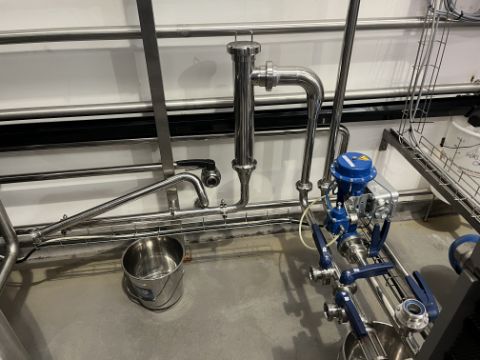

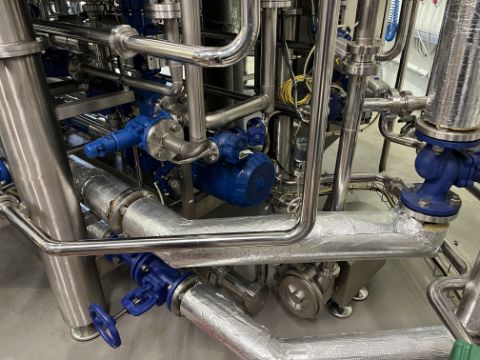

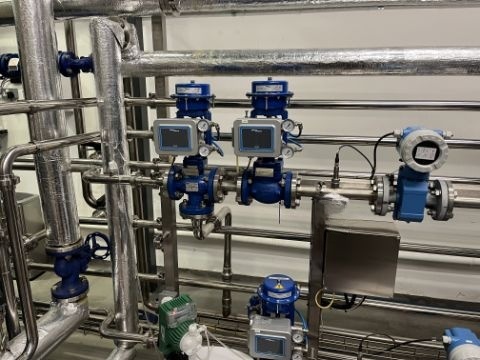

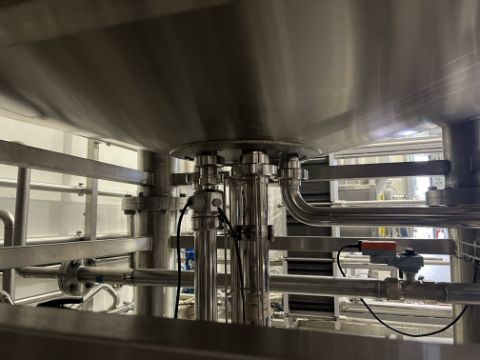

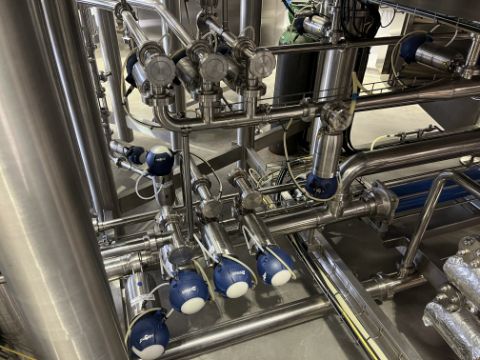

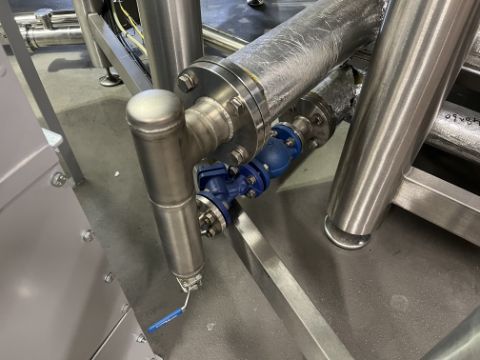

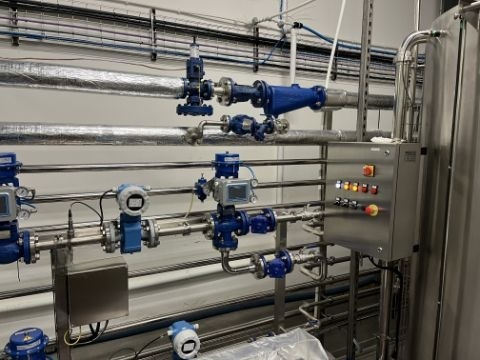

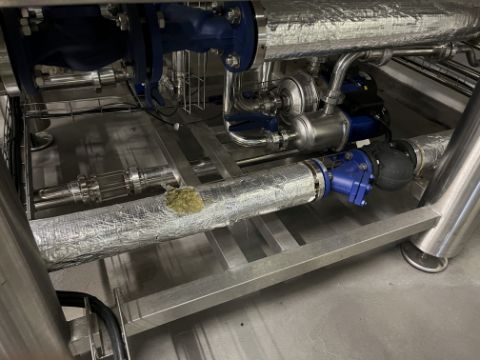

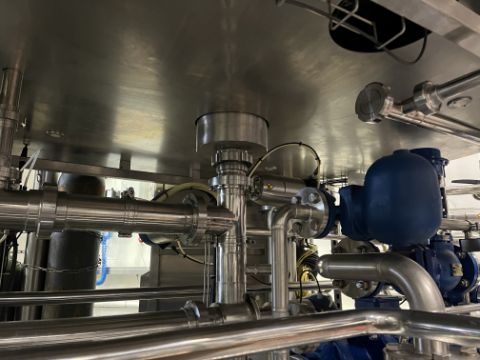

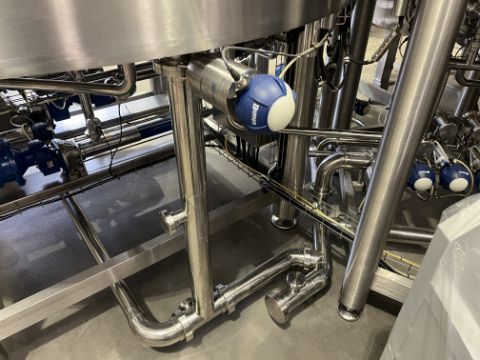

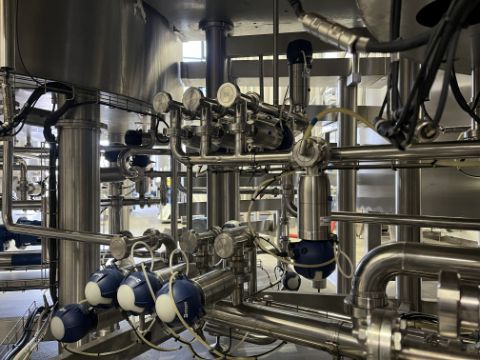

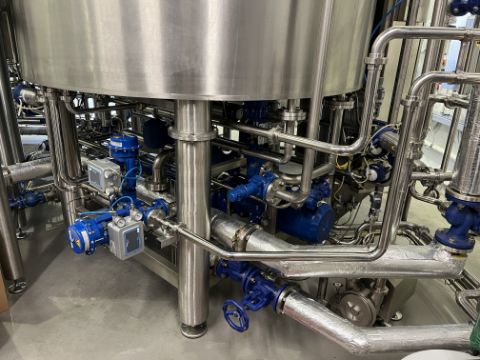

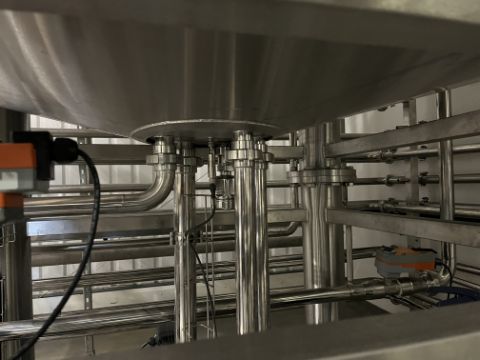

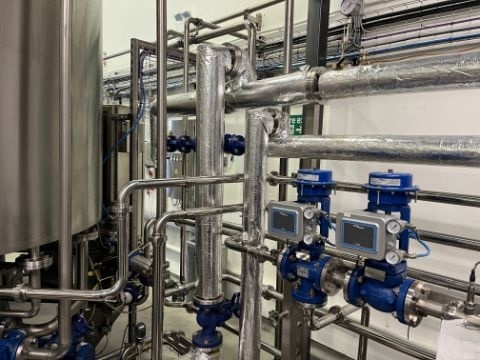

- All integrated pipework and valves

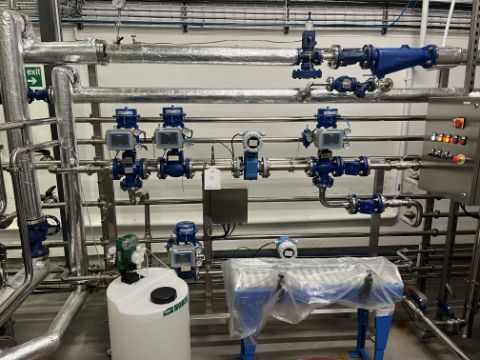

- Water treatment plant comprising of
Dichlorination 1900 l/hr
softener 4,500 l/hr
UV sterilising lamp
filter
Lactic acid inline dosing unit

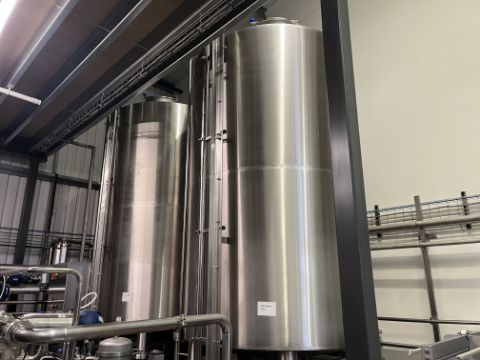

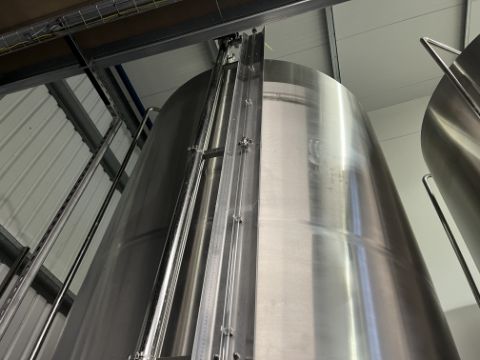

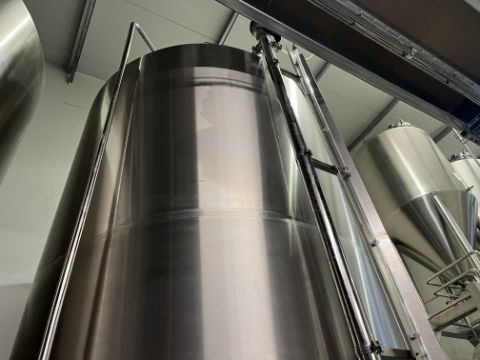

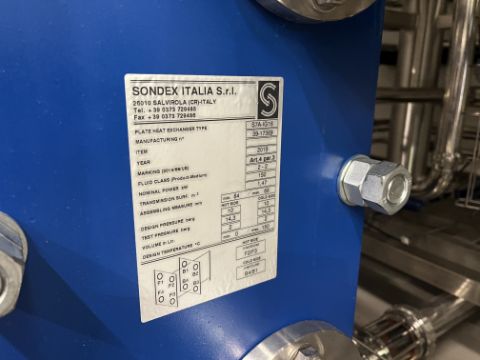

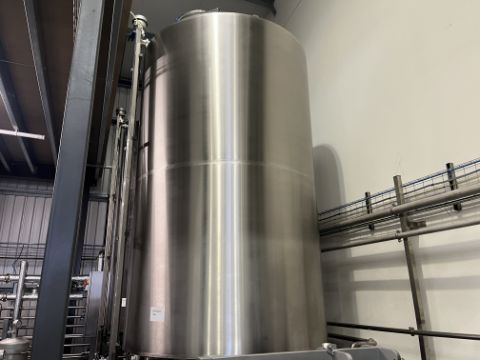

-Jacketed Hot liquor tank 72HL with Sondex plate heat exchanger blue
Type: S7A1G16
S/N: 3917369
and automated delivery and recirculation pump
S/N: HLT720015
Uplift to HLT for future MFVs - 72 HL capacity

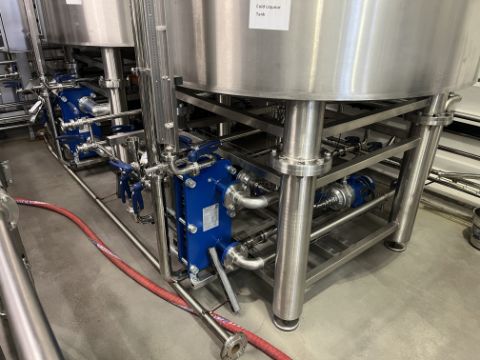

- Cold liquor tank 72HL with Sondex plate heat exchanger blue
Type: S7A1G16
S/N: 3917370
and automated pumps
S/N: CLT720010
- Uplift to CLT for future MFVs 72HL capacity
- Control interface to Brewhouse for hot and cold liquor tank

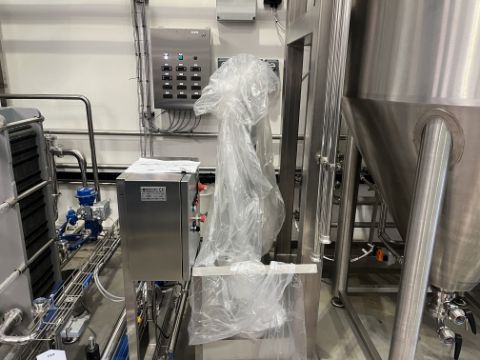

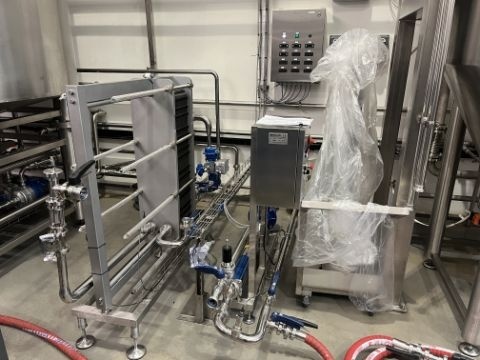

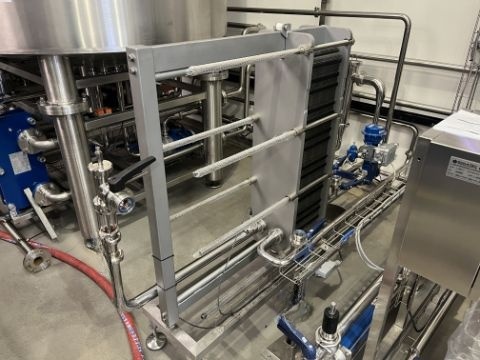

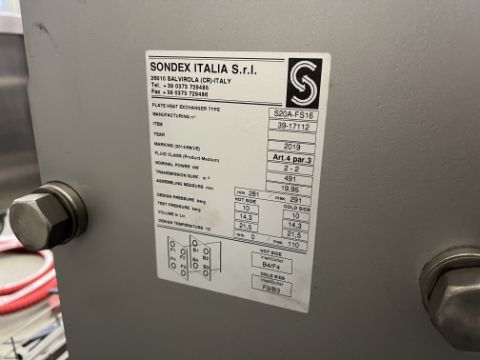

- Sondex heat exchanger
Model S20A Fs-16
S/n 39-17112
YOM 2019

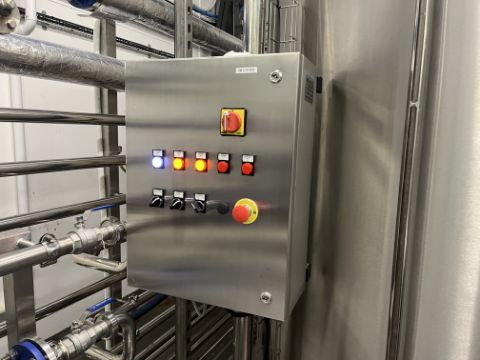

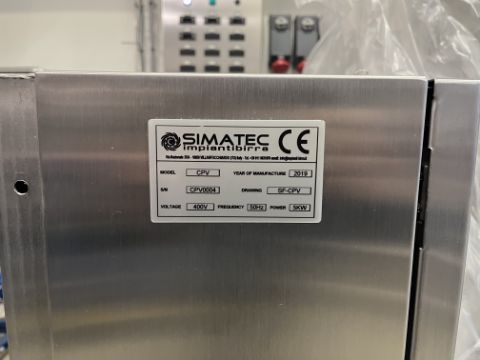

with Simatec control panel
Model CPV
S/n CPV0004
YOM 2019
