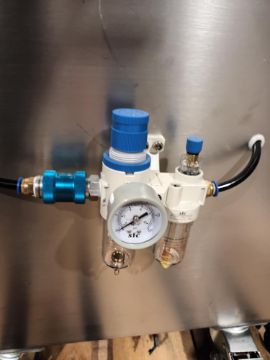

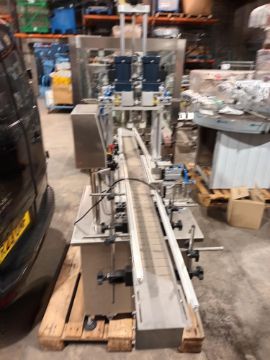

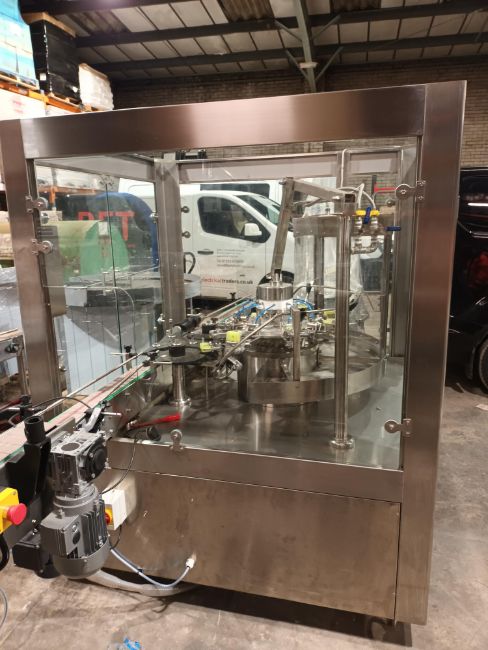

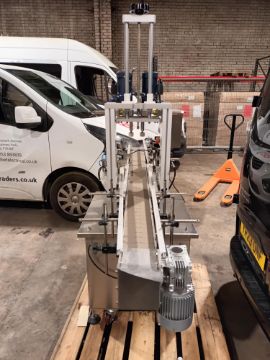

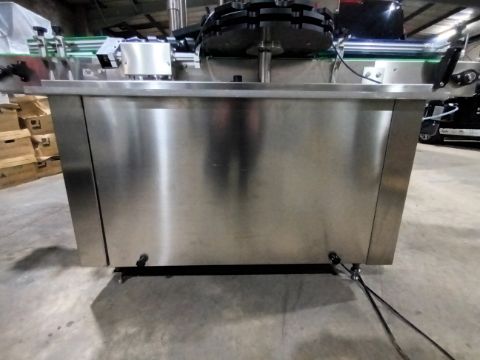

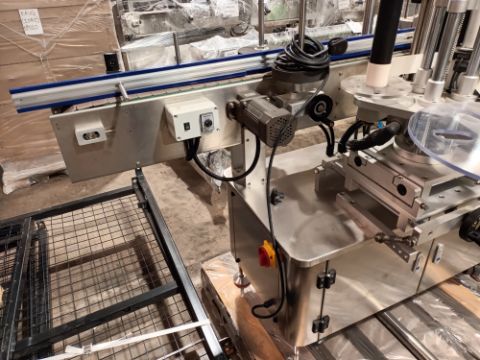

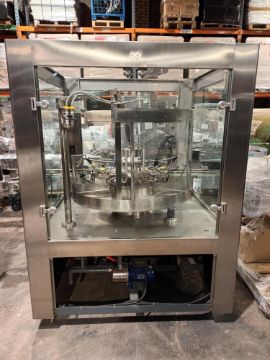

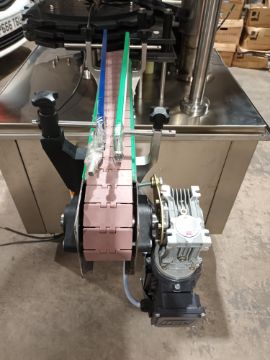

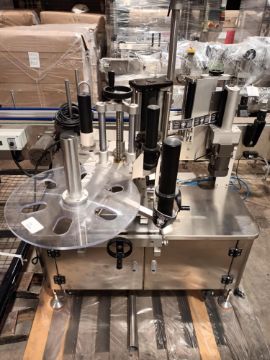

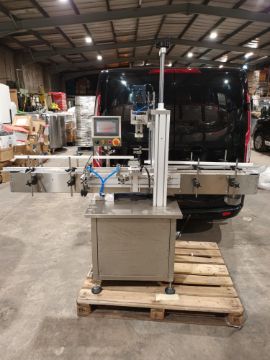

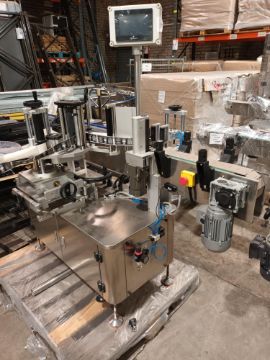

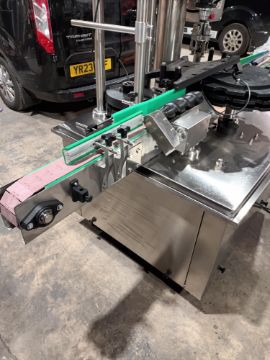

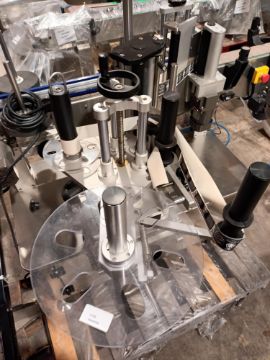

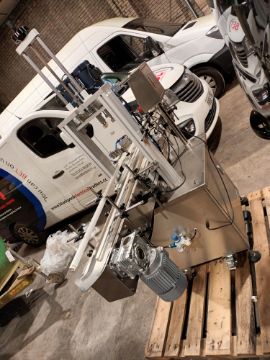

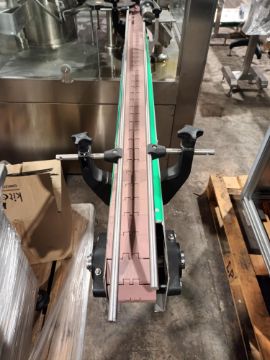

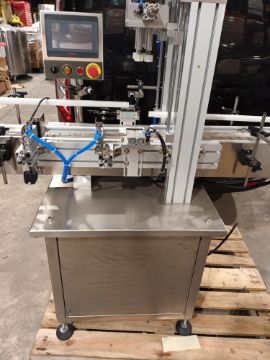

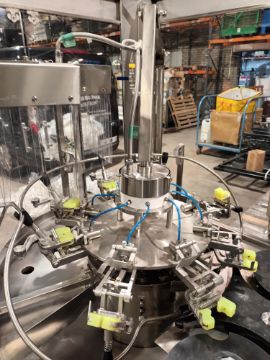

Bottle Inverter/Rinse Machine This machine is designed for cleaning bottle by both liquid or air. Features: Manufactured in SS304 Stainless the machine uses a bottle turn-over and transfer device with a clamping unit and motor to invert the bottles. The device uses a sensor and indexing unit controlled by an air cylinder to allow easy changeover to other bottle size (although some change-parts are required). The height of bottle holding assembly can be adjusted manually. Specification Bottle Material Suitable for plastic or glass bottle Bottle size* Min. Ø 20mm Max. Ø100mm Speed 20~40bpm Power* 220V 50/60Hz 1.0kw Pure air required 100L/min, 4-6bar Machine size mm Length 1250, width 1050, height 1250 Automatic Labeller integrated with a conveyor (specification below) and belt label wrap. The specification of the machine is provided below Labeller system automatic labelling head that offers innovative technical features complemented by compact size, ease of use and sturdiness. Widely used in a range of industrial, commercial and food manufacturing applications, ideally suited for integration with existing systems or as a stand-alone applicator. The labeller can be equipped with a variety of application devices, ranging from simple peel-off dispensing beaks through to advanced pneumatic tamp units. In addition to ‘apply-only’ applications, it can be supplied complete with wrap-around devices (for labelling cylindrical products), top & bottom system (including conveyor), C wrap system, front & back labelling systems and many other standard or customised configurations. It is available in three models each available with either left or right hand mounting. Manufactured in a robust metal structure, the machines operate with self-adhesive labels in widths up to 80, 120 and 200mm (depending on model) and with a dispensing speed that can be set from 5 to 25 m/min. Using an advanced stepper motor system and control electronics, both of which are integrated into the body, the machine is a labeller that is easy to use and straightforward to add into existing packaging lines. Specification Paper feeder width: 10 mm min 200 mm max Output speed: from 5 to 25 m/min with potentiometer from 5 a 35 m/min digital set up (*) Reel holder: Ø external reel 280 mm max. Ø core 40 mm 45 – 76 mm with optional adapters Label length: from 10 to 350 mm Detection of inter-label gaps: with forked photocell Pre-delivery adjustment: electronic with multi-turn potentiometer electronic by digital set up (*) Label stop accuracy: +/- 0,8 mm Power supply: 220-230 V - 50-60 Hz - 100 W Conveyor The belt specification is as follows: Belt width: 190 MM Belt Material Acytel Belt from the ground height: TBC Operating speed: 0-12 M / min (adjustable) Overall dimensions: 2000 x 300 x 900 mm Material: stainless steel 304 Twin head pneumatic piston filler 500ml-5000ml Can be used for thick liquids such as creams to thin liquids. Tolerance temperature: 92deg C Fully Automatic ROPP Capping Machine Automatic Rotary Capping Machine CR-415 is a complete r.o.p.p capping system which includes the cap bulk supply, cap orienting and delivery, cap placement and tightening, and container ingress, staging and discharge onto the customer-supplied existing conveyor. FEATURES: Frame and component made of SUS#304 and ion anodized aluminium, Heavy-duty conveyor by MCC slat top-chain No bottle, no cap Sophisticated capping module Torque capping mechanism ensure no over-capping Precise wire cutting capping head, fit to cap accurately Vibratory cap orientation with reject system Interchangeable star wheel for different diameter of bottle SPECIFICATIONS: Power : single phase 110/220VAC, 50/60Hz Suit for ROPP cap Capping speed：40 Bottles/min Works with caps from 18mm to 22mm in diameter Air requirement：6kgf/cm2 Machine Dimensions：(L)2500mm (W)1200mm (H)1600mm Case Tapers EXC-305. This machine is an auto carton sealer with integrated top and bottom sealing functions Designed using the traditional method to feed the cartons by drive belt and then to seal it using adhesive tape. It just takes 1-2 minutes to make adjustment for applicable carton sizes manually. Widely variable and suitable for all kinds of carton It's an economical, labour saving machine that is easy to operate, inexpensive and reliable. All component materials are robust and durable to guarantee the long term performance Model EXC-305 Applicable cantor sizes L:150～W:110～500 H:100～500 Height of working table Min: 570mm Max: 750 (Can be non standard for out of this using scope) Attaching speed 1000-1200/ hour (can be faster if make non-standard machine) Machine dimension 1000L×820W×1350H Atmosphere source no need Power supply single phase 220V 50/60Hz(can be changed) Suitable adhesive tape W: 48mm L:1000yards(can be changed to W:60～75mm at extra cost)
