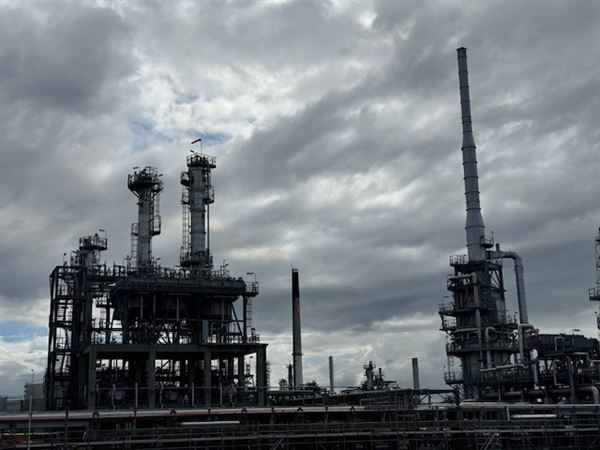

153,000bpd Crude Oil Terminal Stabilisation Plant comprising: Degasser Unit (Unit 9600) with Heat Transfer Unit
Degasser Unit (Unit 9600) with Heat Transfer Unit,
Gas Plant (Unit 9400), and
Liquid Gas Treating Unit (Unit 9330)
Degasser Unit (Unit 9600) in two parallel trains
Request Process Flow Schemes 9600/09/010 to 9600/08/015
Degasser

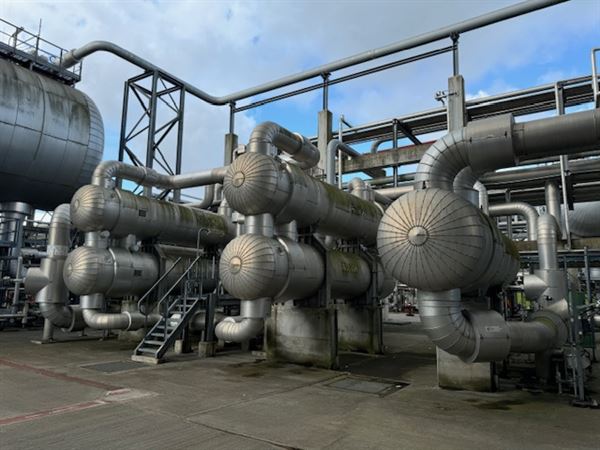

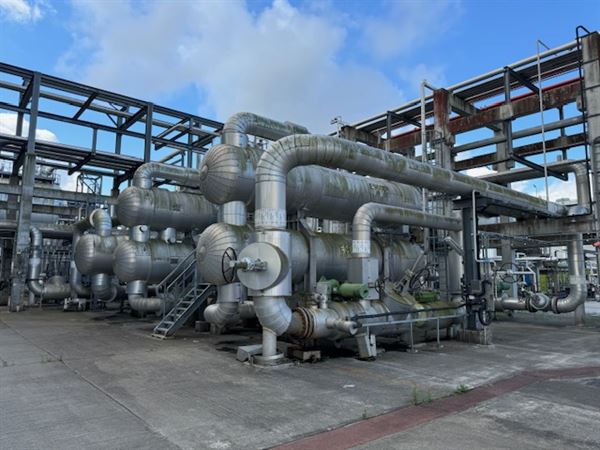

Live Oil/Stabilised Oil heat exchanger E-9605A/C/E/G
Live Oil/Heat Transfer Fluid heater E-9604A
Flow control valve

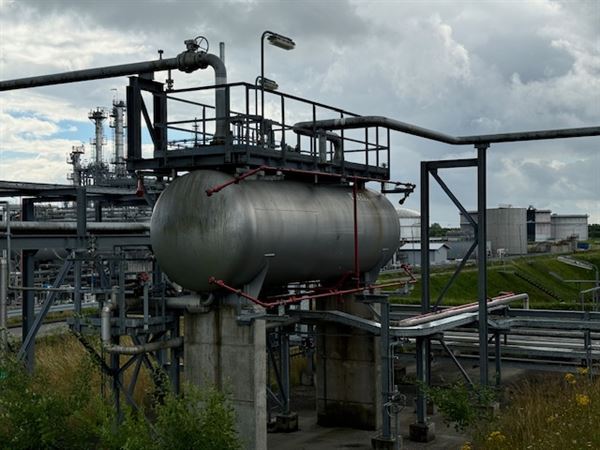

Degasser Vessel V-9601
Offgas routed to 1st Stage of Compressor K-9601A
Stabilised Crude Pump P-9615A
Degasser Water Pump P-9616A
1st Stage Compressor
1st Stage KO Drum V9605A

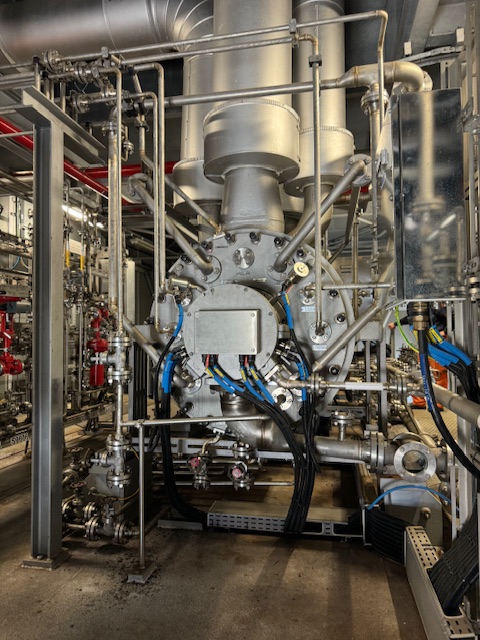

Fixed speed, two stage centrifugal Compressor K-9601A
Control valve
Anti-surge Spillback (routed to inlet of Degasser Vessel) with Air Cooler E-9609A
1st Stage Condenser E9607A
1st Stage Separator V-9606A
Condensate Pump V-9617A
2nd Stage Compressor
Control Valve
2nd Stage KO Drum V-9607A
2nd Stage Condenser E-9608A
2nd Stage Separator V-9608A
Offgas line control valve
Naptha Stream Pump P-9618A
Liquid Butane Product Cooler E-9302
Gas Plant Unit (Unit 9400)
Request Process Flow Scheme 9400/08/001 to /003
Stabiliser
Stabiliser Feed Preheater E-9401

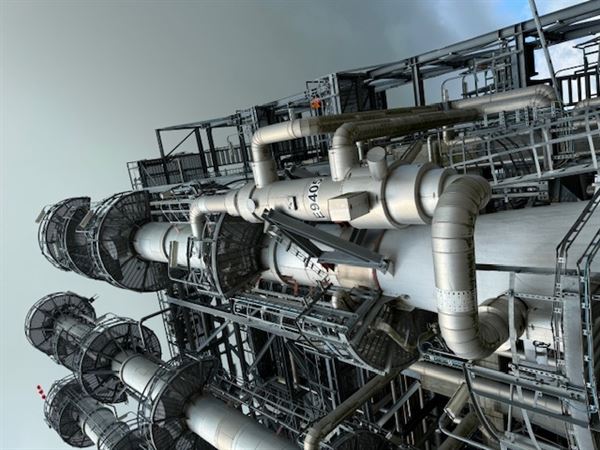

Stabiliser Column C-9401
Stabiliser Reboiler E-9402
Naptha Rundown Cooler E-9404
Stabiliser Overhead Condenser E-9403
Stabiliser Overhead Accumulator V-9401
Stabiliser Reflux Pup P-9401
Stabiliser LPG Pump P-9402

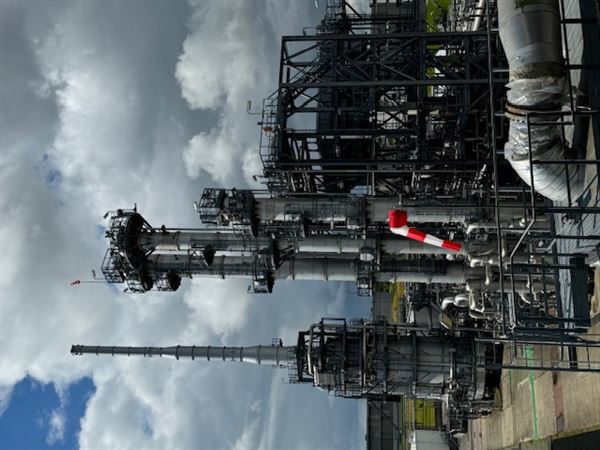

Deethaniser
Deethaniser Column C-9402
Deethansier Overhead Condenser E-9406
Deethaniser Overhead Accumulator V-9402
Static Mixer M-9401
Deethaniser Reflux Pump P-9403
Deethaniser Reboiler E-9405
Depropaniser
Depropaniser Columns C-9403
Depropaniser Reboiler E-9407
Butane Rundown Cooler E9409
Depropaniser Overhead Condenser E-9408
Depropaniser Overhead Accumulator V-9403
Propane Product/Reflux Pum P-9404
Liquid Gas Treating Unit (Unit 9300)
Request Process Flow Schemes 9300/08/001 to 9300/08/002
Liquid Propane Treating U-9301

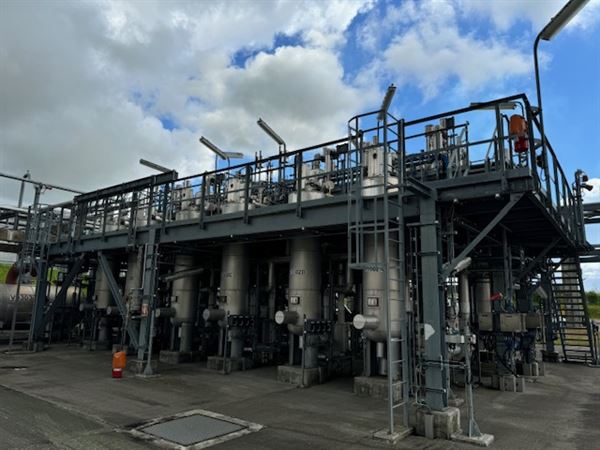

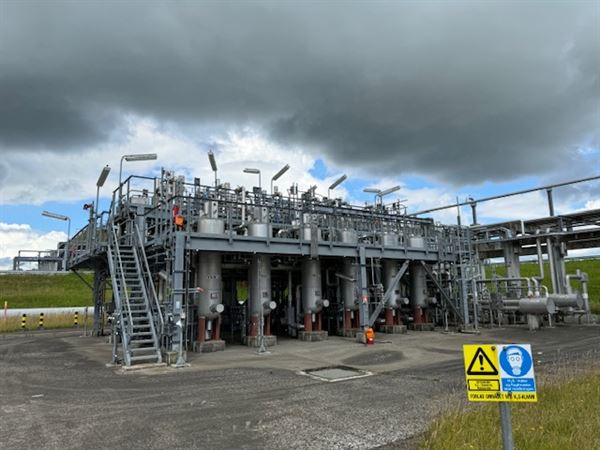

6x identical Adsorber Vessels V-9301A/B/C/D/E/F in series, each with zinc bed adsorbent, 4+2 lead-lag adsorber vessel configuration
Propane Rundown Cooler E-9301
Propane Product Storage Tanks
Cooling Water Circuit, also used for Butane, comprising
Cooling Water Tower A-9301
Water Softening Unit incl. Water Softener A-9302, NaCl Storage Tank and Resin Trap A-9305

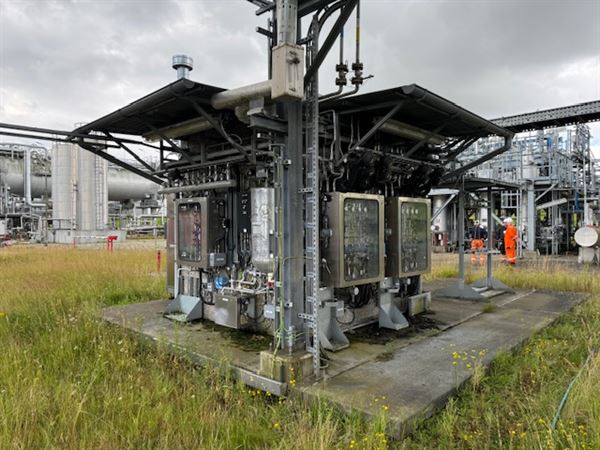

Chemical Injection Skid
Circulation Pumps P-9302A/B
Cooling Water Filter S-9301
Adjacent piping and equipment
Liquid Butane Treating Unit (Unit U-9302)
6x identical Adsorber Vessels V-9302A/B/C/D/E/F in series, each with zinc bed adsorbent, 3+3 led-lag configuration
Butane Rundown Cooler E-9302
Butane Product Storage Tanks
Heat Transfer Fluid (HTF) Unit (Unit 9600)
Request to Process Flow Schemes 9600/08/016, /017 & /035
HTF Heating System
Expansion Vessel V-9610

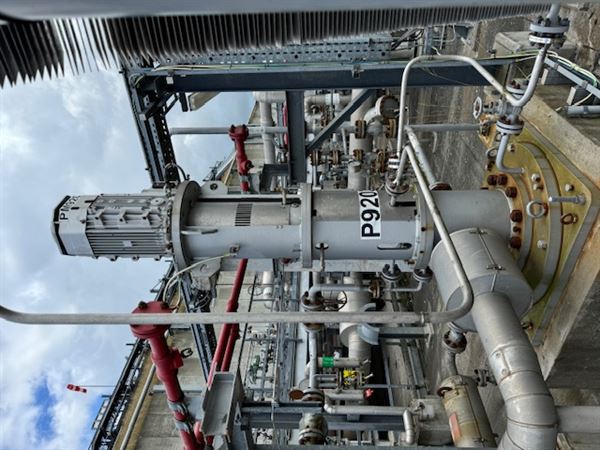

HTF High Temperature (HT) Circulation Pump P-9620

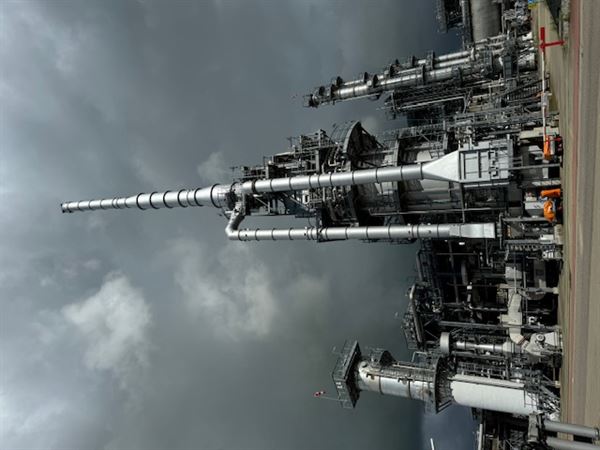

HTF Furnace F-9601
HTF HT Supply Header
HTF HT circulation loop includes Trim Cooler E-9612
HTF Low Temperature (LT) Circulation Pump P-9621
Side Stream Filter S-9622
Start-up Cooler E-9611
HTF Furnace F-9601, gas fired
with 6x low NOx forced draught burners
and 2x Forced Draft Fans K-9605A/S
Induced Draft Fan K-9606
Air Preheater E-9610
Flue Gas Cooler E-9613
LP Fuel Gas KO Vessel V-9625
HTF Drain System
Request C750-CBIH-P-RA-0058 Process Description HTF Storage and Drain System
