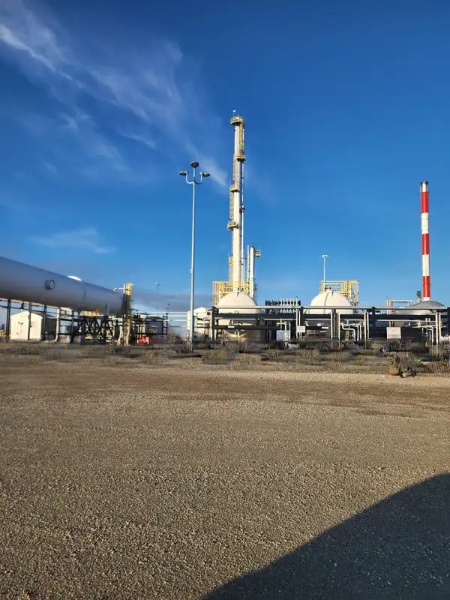

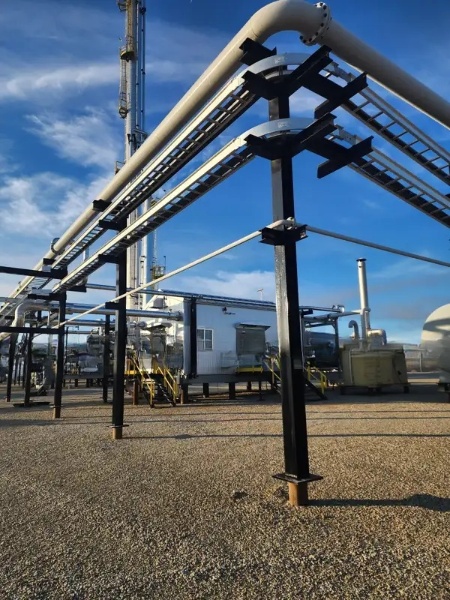

C3/C4 Spitter Equipment:
Inlet Conditions = 1500 BBL/d x 300 psig @ 68F.
458,251 BTU/hr Inlet Feed/Bottoms Exchanger & 47,088 BTU/hr Feed Product Heat Exchanger.
36" ID x 65' S/S 30-Tray C3-C4 Splitter Tower.
2.84 MMBTU/hr Reboiler.

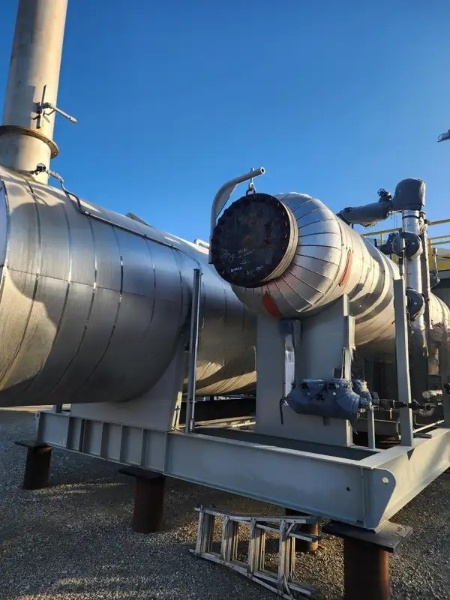

2.53 MMBTU/hr Reflux Condenser.

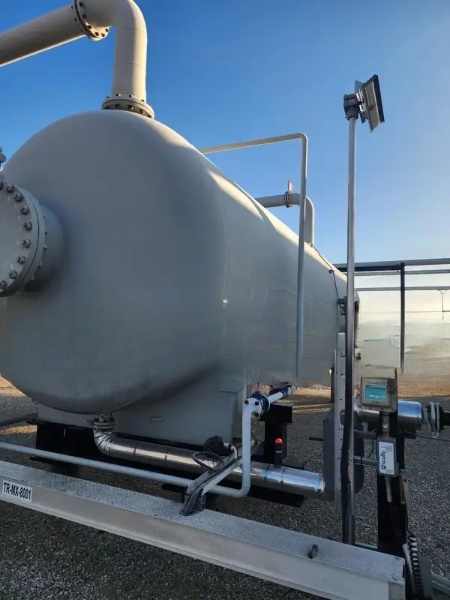

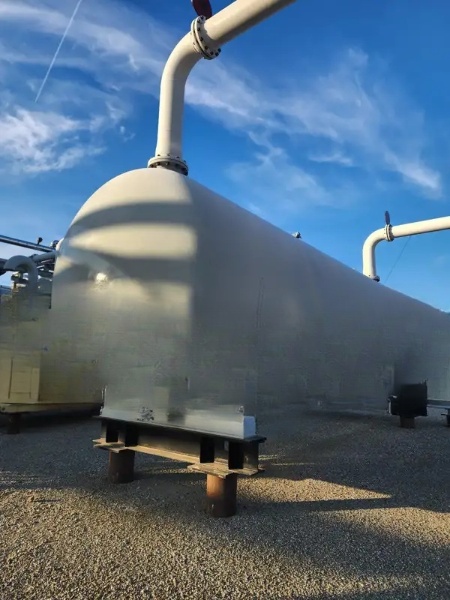

42" ID x 10' S/S Reflux Drum.

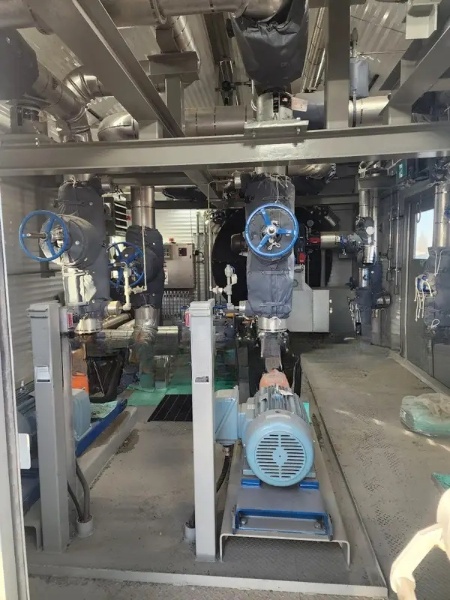

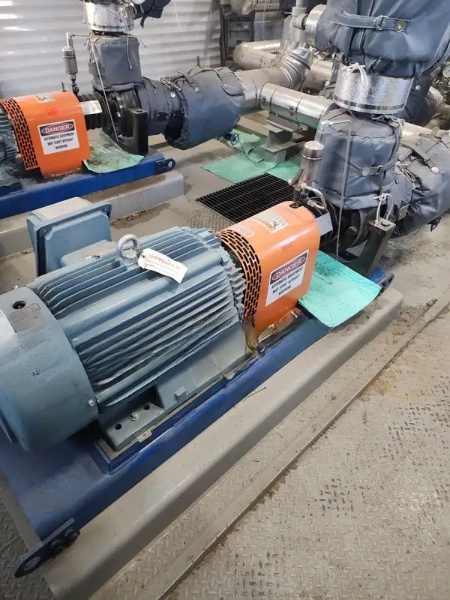

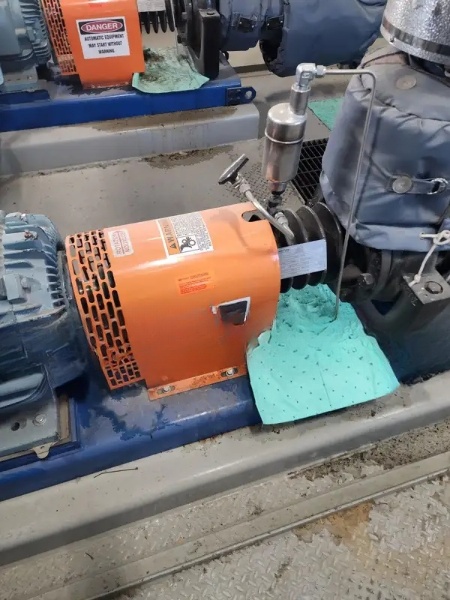

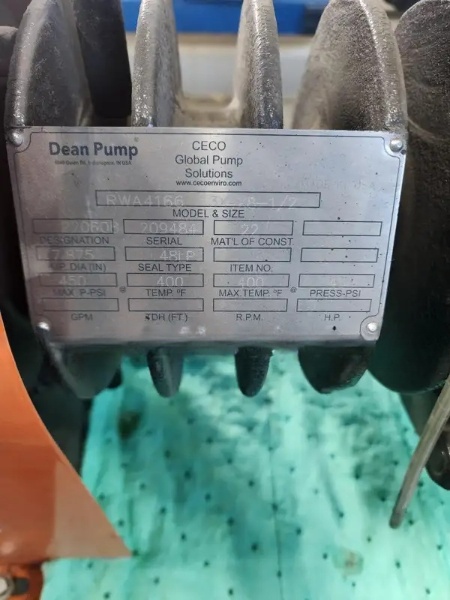

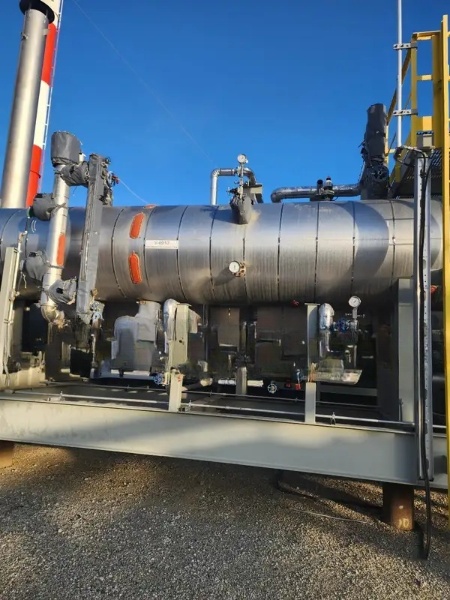

2 x 100% 15hp 100 USGPM Reflux Pumps.

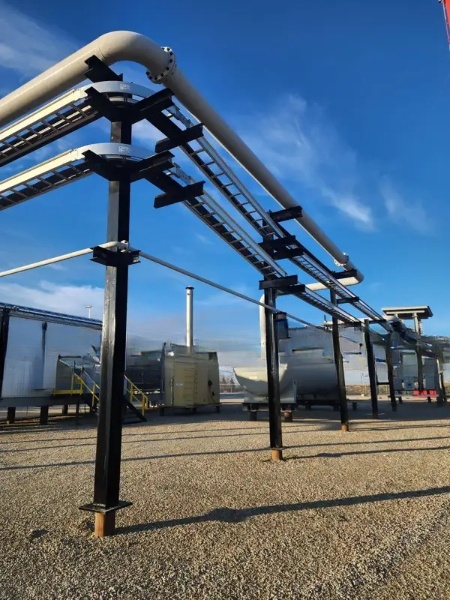

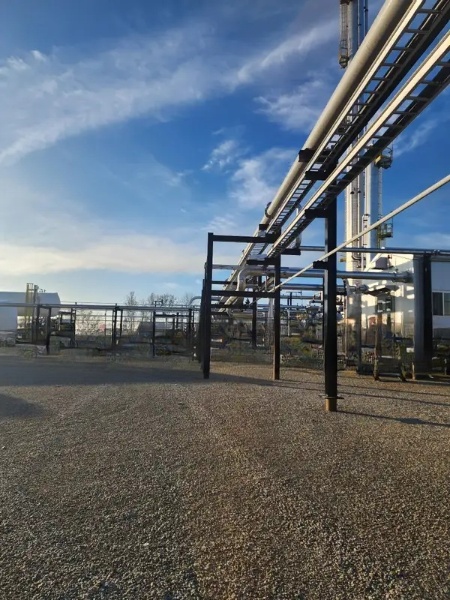

Propane/Propylene Splitter Equipment:
Inlet Conditions = 813 BBL/d x 329 psig @ 122F.
66" ID x 170' S/S 94-Tray Propane-Propylene Splitter Tower.
12.93 MMBTU/hr Reboiler.
12.95 MMBTU/hr Reflux Condenser.
60" ID x 20' S/S Reflux Drum.
2 x 100% 40hp 539 USGPM Reflux Pumps.
80,868 BTU/hr Product Cooler.

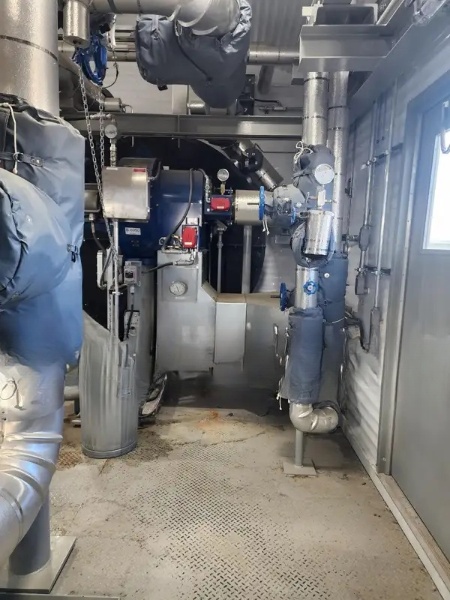

Heat Medium Package c/w:

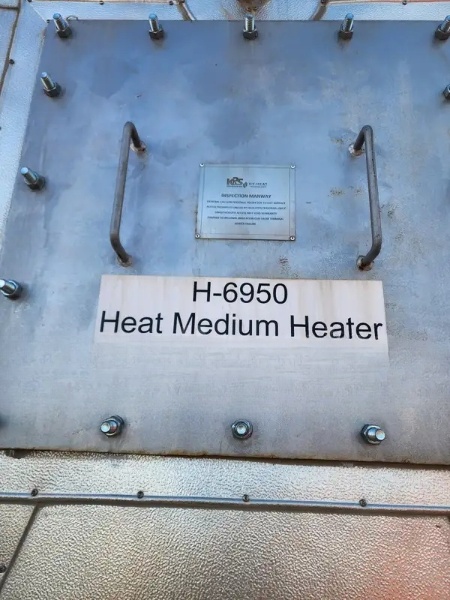

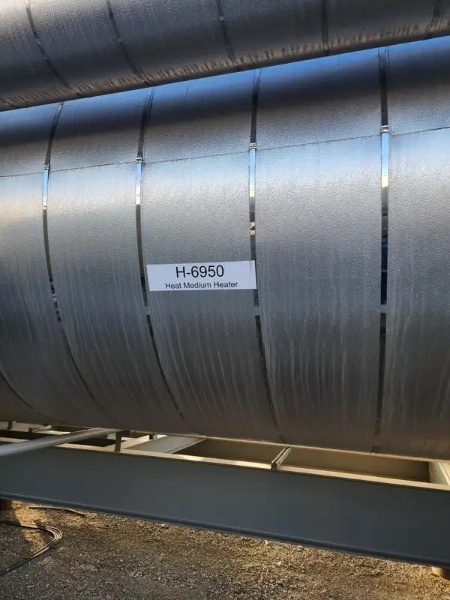

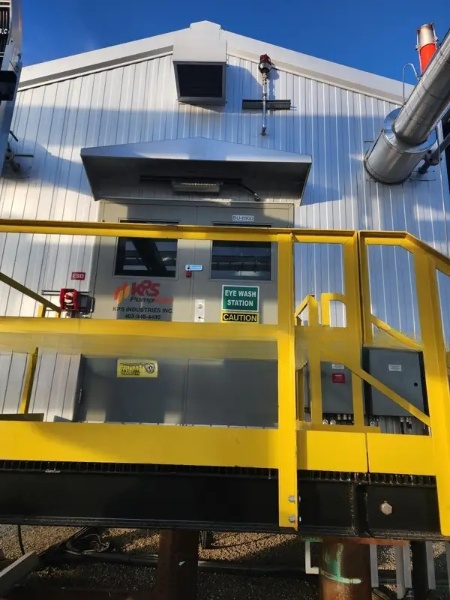

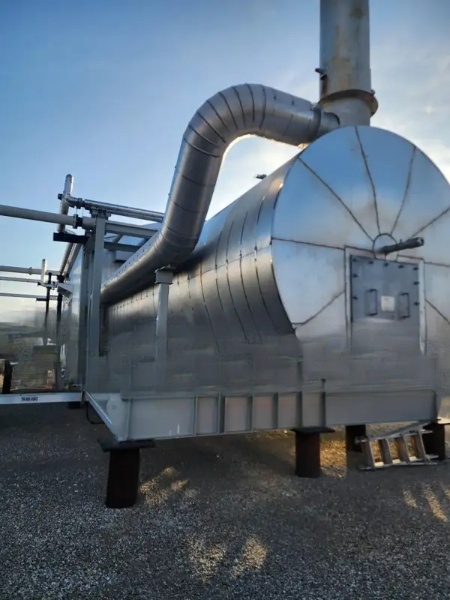

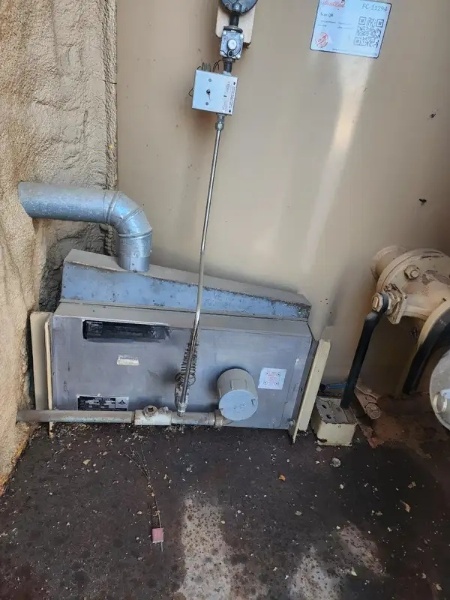

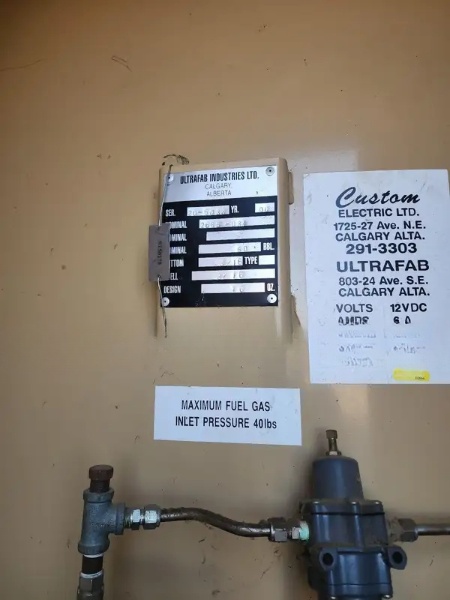

18 MMBTU/hr Heater.

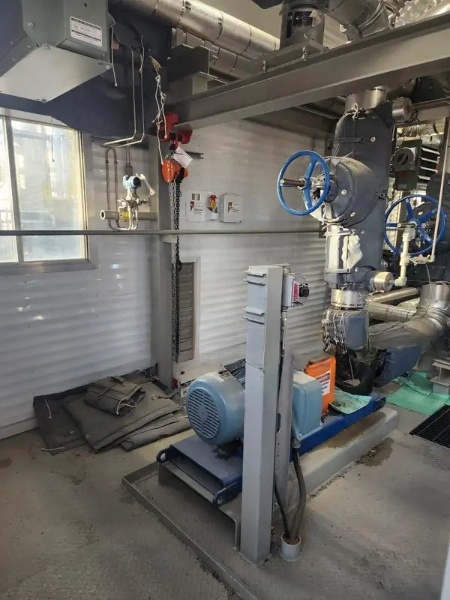

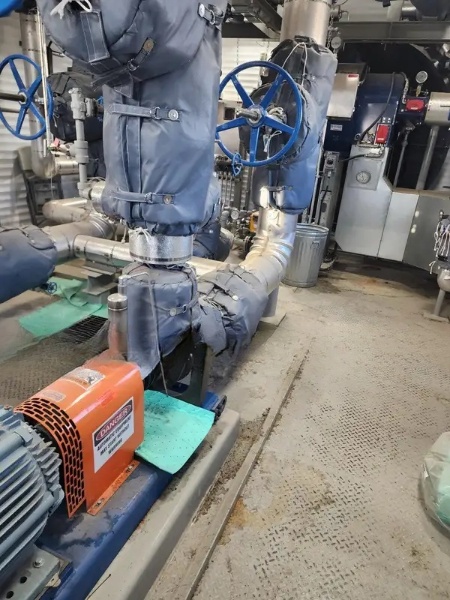

2 x 100% 50hp 768 USGPM Circulation Pumps.

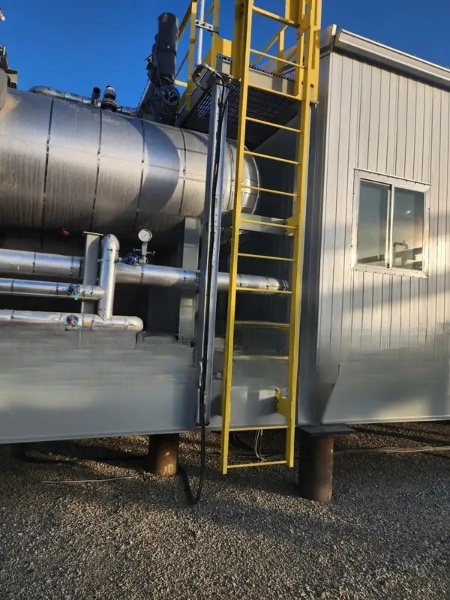

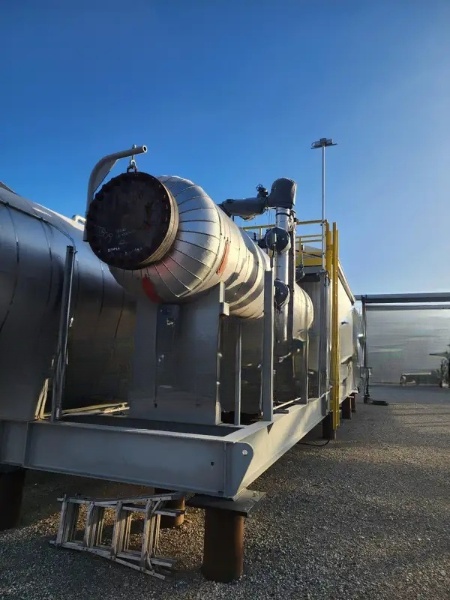

48" OD x 20' S/S Surge Drum.

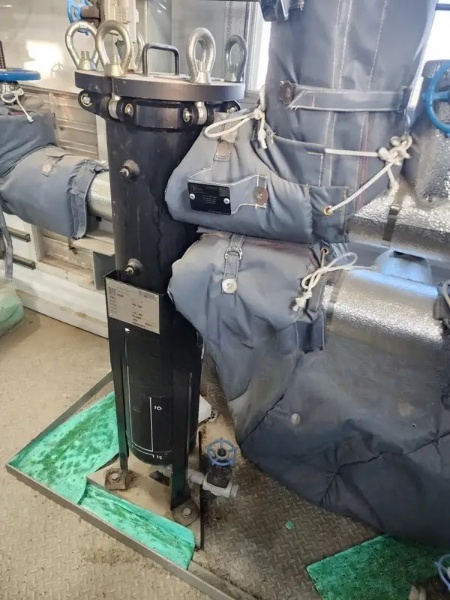

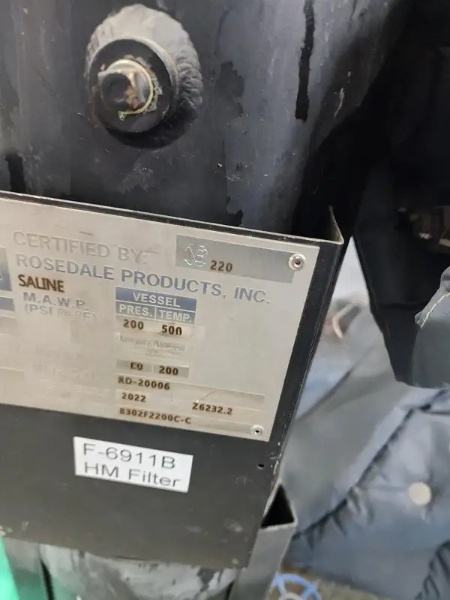

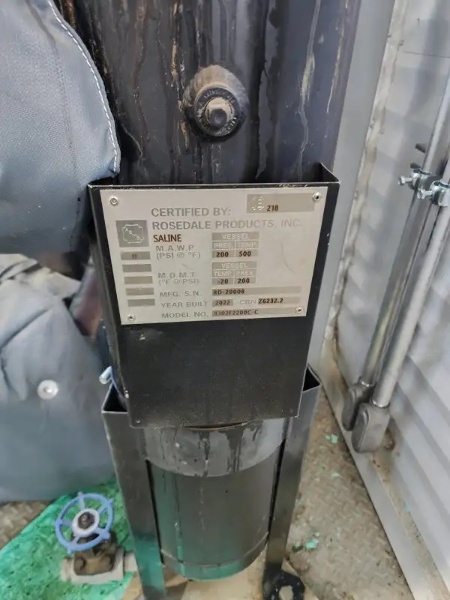

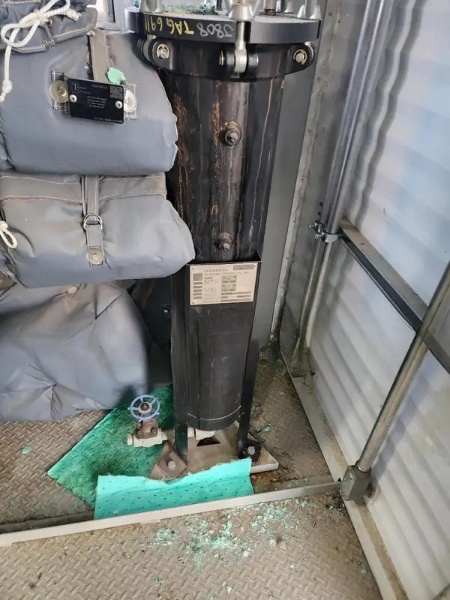

2 x 50% 100 USGPM 10 Micron Slipstream Filtration.

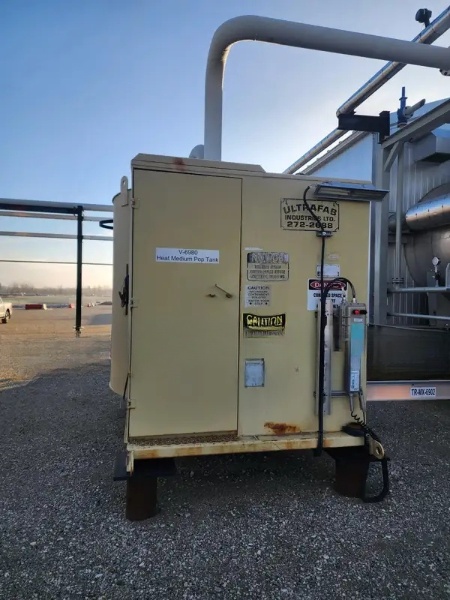

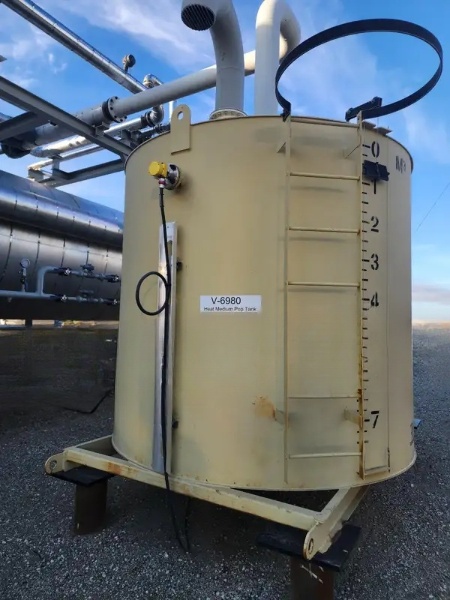

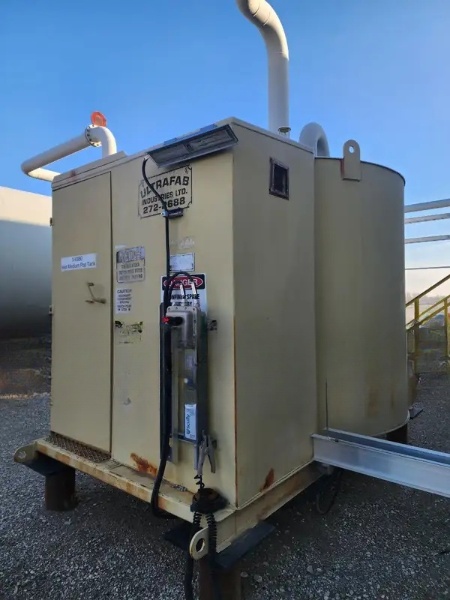

25 BBL x 16 Oz. Pop Tank.
4:1 Overall Turndown.

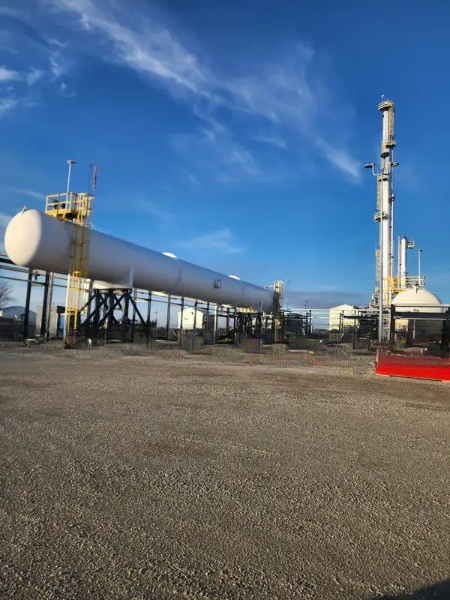

Olefinic NGL Truck Offloading Bullet.

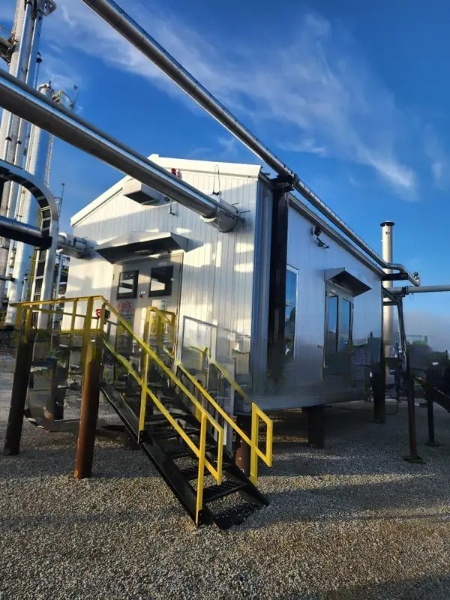

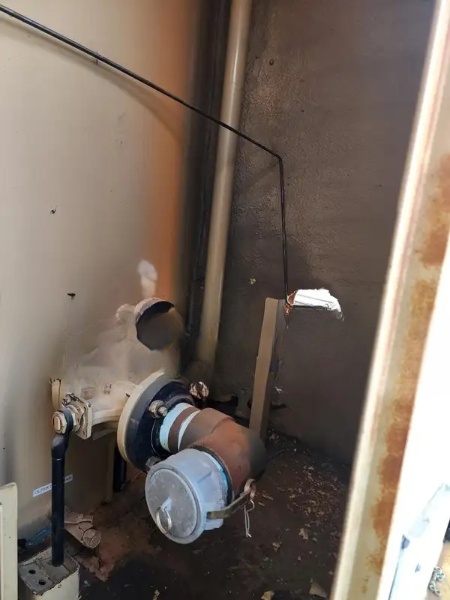

NGL Feed Pump Building.

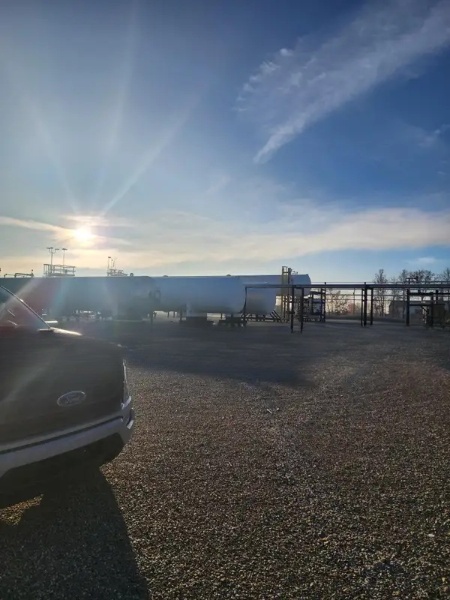

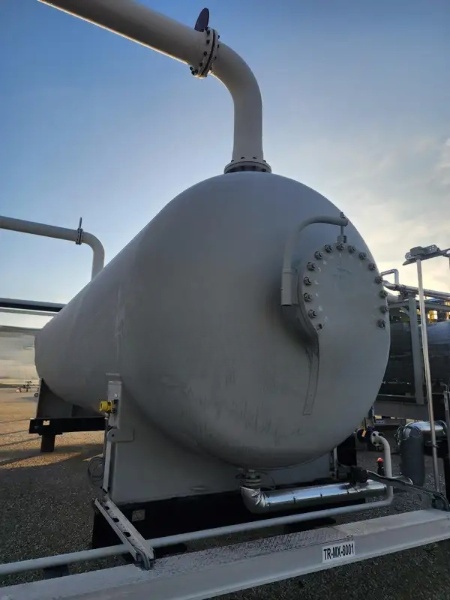

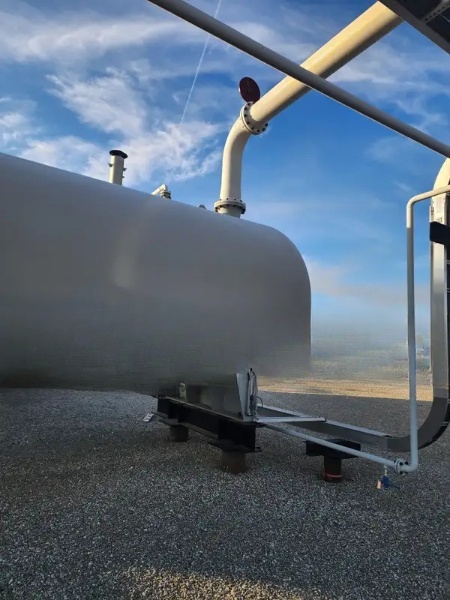

34,600 USWG x 500 psig Sales Propylene Bullet.
59,700 USWG x 250 psig Sales C4+ Bullet.
59,700 USWG x 250 psig Sales Propane Bullet.
Truck Loading Pump Skids.
Gas Chromatograph.
Instrument Air Compressor.

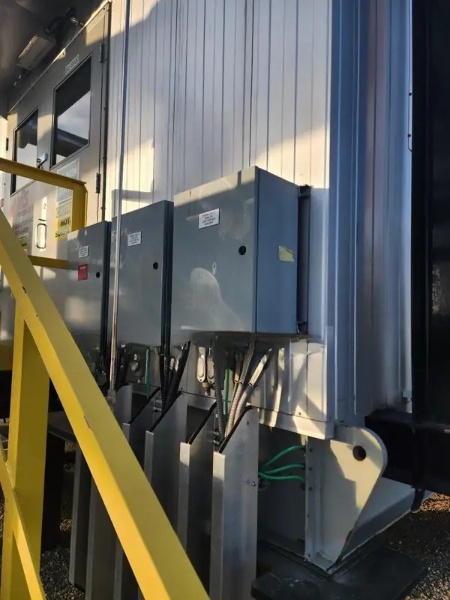

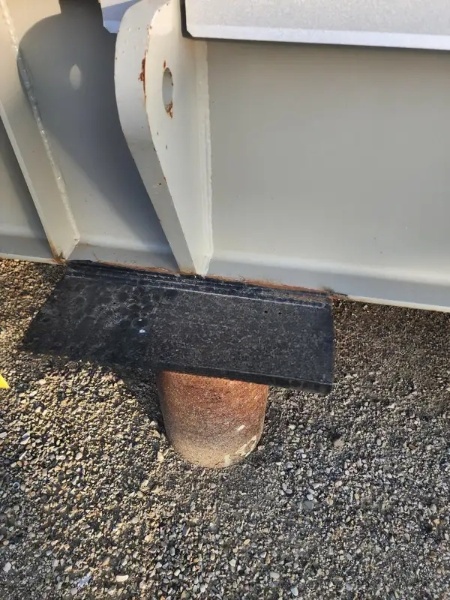

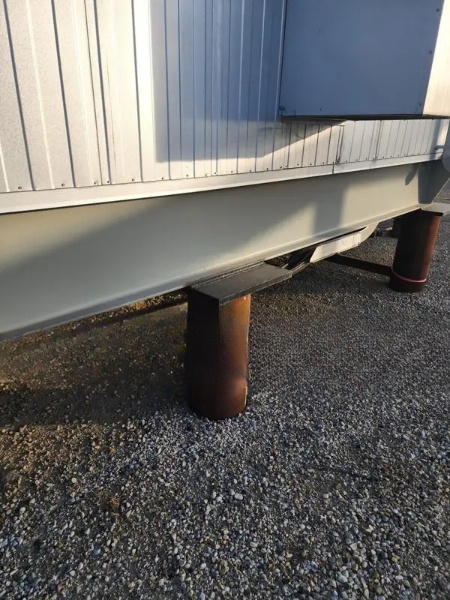

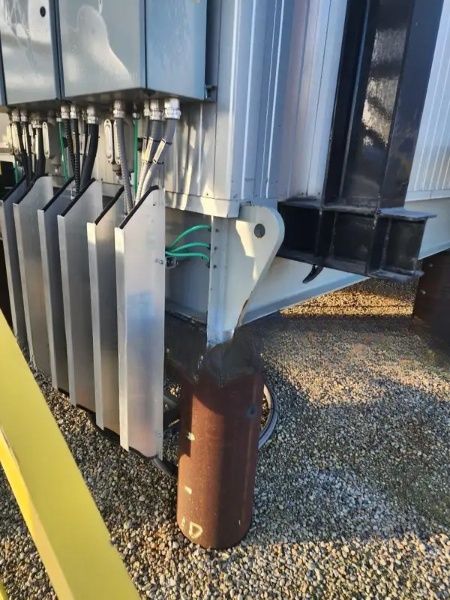

MCC Building.

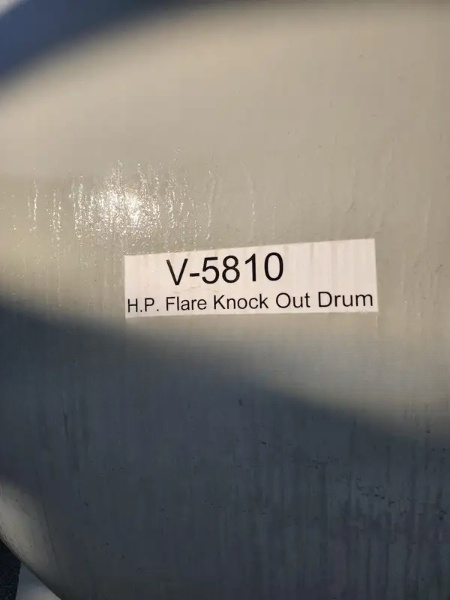

9' ID x 29' S/S Flare Knock-Out Drum.

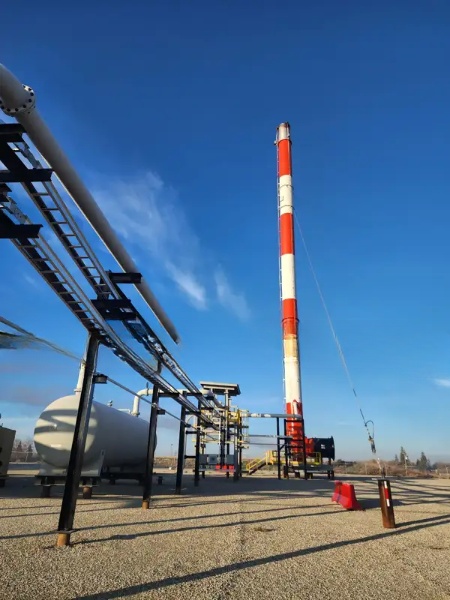

14" x 66" SL x 145' Tall Flare Stack w/ FlareTech Pilot Monitoring/Ignition System.
Olefinic NGL Inlet Design Parameters:
1500 BBL/d.
7 psig @ -22F to 113 psig @ 86F.
Outlet Stream Design Basis:
 Propene: 615 BBL/d x 229 psig @ 104F.
 C4+: 687 BBL/d x 57 psig @ 102F.
 Propane: 198 BBL/d x 178 psig @ 104F.
